2013 Variable watt & voltage mod Imotion 3 v+
Press Button A (ON/OFF Button) above 3s till the LED on. Connect your Atomizer to Imotion3 then press button D to start smoking.
Function select:
Press button D 5 times to get into Function selecting manual, then press the button "B" or "C" to switch: "1.dR"-Display resistance, "2.dU"-Display Voltage,"3.dP"- Display wattage. Press button D again to get in the function.
Power record:
Imotion3 can record your favor voltage or wattage; any button press will not be changed.
Press button "B" and "C" at the same time above 3 seconds to record current voltage or wattage. Press again Button "B" and "C" for 3 seconds to delete your records.
Battery check:
Press button A to check battery voltage (2.8v-4.2v) when power on
Others:
1. Battery voltage less than 3.3v LED shows “Lo” and stop working.
2. Imotion3 max out put is 10W. If the setting voltage with atomizer has over the max out put, Imotion3 will keep the maximum out put, at this moment the working voltage will lower than your setting and shows on LED.
Feature:
1 Variable Voltage 3.0V~6.0V; Variable Watts: 3W-10W
2 Ultra-low static current;
3 Built-in three digital display tube;
4. Adjustable positive pin in the center of the thread, can fix the poor connection problem;
5. Preserved previous settings once you change the battery or take off the battery;
6.Display the actual output voltage when vaping;
7 Amperage limiting system protects against over current situations;
8 Reverse battery protection keeps circuit safe if the battery is installed backward;

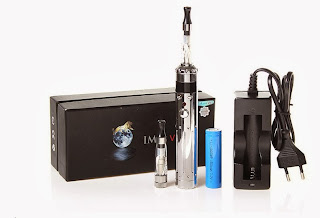

Package component:
1x 18650 Batterry
2x CE4 cleartomizer
1x complete tube with manual
1x Charger 1x gift package
